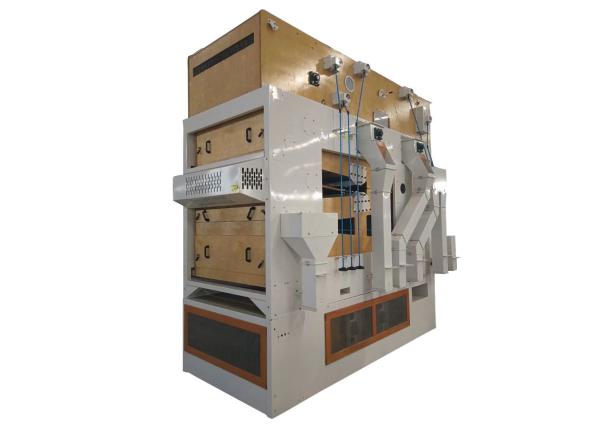

Carbon Steel Grain Cleaning Equipment Air Corn Screener Cleaner 5X - 12

    Buy cheap Carbon Steel Grain Cleaning Equipment Air Corn Screener Cleaner 5X - 12 from wholesalers

    Buy cheap Carbon Steel Grain Cleaning Equipment Air Corn Screener Cleaner 5X - 12 from wholesalers
    • Buy cheap Carbon Steel Grain Cleaning Equipment Air Corn Screener Cleaner 5X - 12 from wholesalers

    Carbon Steel Grain Cleaning Equipment Air Corn Screener Cleaner 5X - 12

    Ask Lasest Price
    Brand Name : CTGRAIN
    Model Number : 5X
    Certification : CE / ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 Sets per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Carbon Steel Grain Cleaning Equipment Air Corn Screener Cleaner 5X - 12

    Carbon Steel Material Seed Cleaning Machine 5X - 10 Air Screener ​


    The optimal machine for seeds cleaning


    Widely used to clean and classify all kinds of seeds, like wheat, paddy, maize, barley, sunflower seeds, etc.


    Features :


    1. Multi screens arranged in reverse direction, high efficient separation for small and coarse impurities.


    2. High quality wooden structure contributes to better sealing and lower noise.


    3. Thanks to wide range and easy adjustment to each variable parameter, fine processing can be realized.


    4. All the screens are with cleaning balls to reach self-cleaning effect.


    5. All the moving parts are with good safeguards.


    6. The whole machine employs complete symmetrical design in left and right. So the discharging system can be interchangeable. This can satisfy different processing needs.


    7. Box-type structure is adopted, which can effectively reduce the dust content in processing workshop.


    8. Cooperation of top and bottom aspiration system can efficiently remove the light impurities for two times.


    9. Different screens can be easy to change and combine to meet different processing requirements.


    10. Top and bottom screen boxes arranged in reverse direction can make the machine better self-balanced.

    Technical Parameter List :


    Type5X - 12
    Power5.15 kW
    Capacity12 t / h
    Screen Size800 x 1250 mm
    Screen No.15 pcs
    Air Volume12520 m3 / h
    Weight3600 kg
    Shape Size3790 x 1940 x 4060 mm

    Screening System


    1. Flexible Guide Plate


    Flexible guide plate can be moved horizontally along the screen.


    2. Grading Screen and Impurities Outlet


    The grading screen is used for separating the smaller impurities and grass seeds from materials. The impurities go to impurities outlet along the fixed guide plate. Impurities Outlet is located at the end of fixed guide plate.


    3. Fixed Guide Plate


    Fixed guide plate is used for material conveying and to make the most of the entire width of grading screen.


    4. Screened Material Outlet


    Screened material outlet is the outlet of final product.


    5. Front Screen and Impurities Outlet


    Front Screen is punched screen with round holes and it is used for separating the coarsest impurities. The screen mesh should be large enough in order to get better screening effect. Impurities outlet is located at the end of front screen.


    6. Guide Board


    The guide boards are used to convey the materials on to their respective screen to make the materials distribute onto the entire width of the screen to keep the air screener higher working efficiency.


    7. Material Flow Changer


    It can make the up screen used as down screen and the down screen used as up screen.


    8. Sorting Screen and Impurities Outlet


    Sorting Screen can be used to separate and grade materials through the collocation of different screen mesh, different outlet location and different material flow changer choices.
