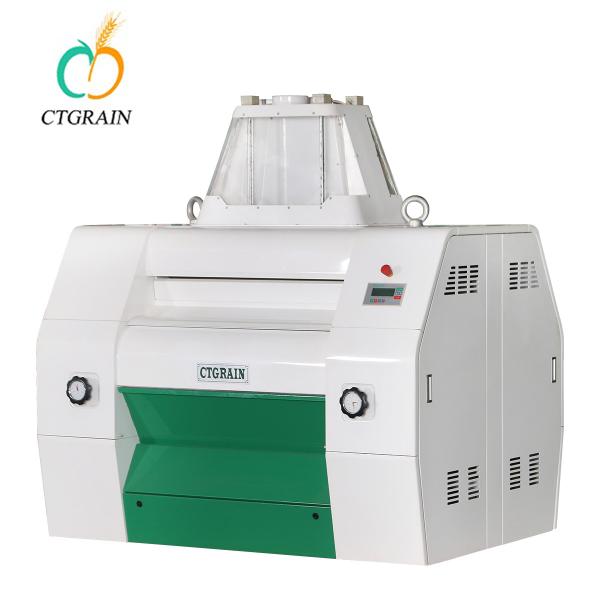

MME Series Commerical Roller Mill For Grain Milling Equipment With Customized Color

Working principle

After the machine starting up, the rollers begin to rotate. The distance of two rollers is wider. During this period, there is no material fed into the machine from inlet. When engaging, the slower roller moves toward faster roller normally, meanwhile, the feeding mechanism begins to feed material. At this time, the related parts of feeding mechanism and roller gap adjusting mechanism begin to work. If the distance of two rollers is equal to working roller gap, the two rollers engaged and begin to grind normally. When disengaging, the slower roller leaves from faster roller, meanwhile, the feeding roller stops feeding material. The feeding mechanism makes the material flow into the grinding chamber stably and spreads the material on the roller working width uniformly.

Features

1) Roller is made of centrifugal cast iron, dynamically balanced for a long working span.

2) Horizontal roller configuration and servo-feeder contribute to a perfect grinding performance.

3) Air aspiration design for the roller gap help to reduce the temperature of the grinding roller.

4) Automatic operation system makes it possible to display or modify the parameter very simply.

5) All the roller mills can be central controlled (e.g. engaged/disengaged) through PLC system and in control room center.

Specifications

Selling Points :

Level sensor is controlled by infrared. Sensitive flow control, accurate feeding of feed roller avoid the frequent engage and disengage of roller and extend the service life of roller .

Roller : Double metal centrifugal casting , high strength and good wear resistance .

Unbalance of the dynamic balance ≤ 2g .

Total radial run-out < 0.008 mm .

The shaft end is treated with 40Cr and the hardness is HB248-286 .

Hardness of roller surface : Smooth roller is Hs62-68, tooth roller is Hs72-78. Besides , the hardness distribution is uniform , and the hardness difference of the roller is ≤ Hs4 .

Long service life .

Project installation :

we have professional electrical and mechanical project installation team . The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance .

The commissioning is carried out under the guidance of experienced experts and professors on the spot .

The test can be successful by one time commissioning , and can totally meet or exceed the design specifications and requirements .

Chinatown Grain Machinery Co., Ltd. provides complete machinery and service for food production and grain processing industries, such as wheat flour mill, fodder factory, and rice processing plant. Thus far, our products include conveying equipment, cleaning equipment, flour milling equipment, and so on. They have been recognized by a number of customers both at home and abroad.

The company focuses on technology reformation, improving the manufacturing ability and quality of machine. The company took the lead in the introduction of CNC laser cutting machine, CNC bending machine, CNC lathes and other advanced processing equipment.

At the same time purchased CNC machining center,CNC boring machine, CNC lathe machine, surface grinder,planing machine and other advanced processing equipment investment,and added electrostatic spraying production line. The product quality can be promised by these reliable manufacturing equipment support.

Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only has good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.

Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance.
The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.

Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business.We warmly welcome clients and supplied excellent solutions with best quality equipment and technical services, and we received high recognition from them.

There are many exhibitions of grain machines we have joined ,it got many attention and set a long-term stable cooperative partnership with many customers who work on the same industry for example:

2015: Indonesia Packaging Machinery Exhibition

2016: Algeria International Agricultural Fair (SIMA SIPSA)

China Machinex Fair Egypt 2016

China Machinex Fair South Africa 2016

2017: Turkey Food and Feed Processing Technology Exhibition (IDMA)

The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.

FAQ

1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What’s the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
