Corn Flaking Machine / Grain Grinding Equipment Hydraulic Flaking Machine

detail introduce:

It adopts high-nickel-chromium-molybdenum alloy centrifugal roll from China First Heavy Industries with hardness of HS75º-78ºand thickness 30mm, which ensures the strength of roller’s inner support. Our company has achieved patented technology for shaft assembly process, the roller body is with a filling hole for adding heat conduction oil, which promise uniform heat recycling and the roll body will not deform. And the rolled flake is uniform, the roller service life is prolonged to be twice.

Features:

1. Square bearing seats for rollers can move along the smooth rail, getting the two rollers engaged or disengaged, which is controlled by energy-saving PLC oil pump station. Equipped with SKF bearings, SEW geared motors, Siemens high-efficiency energy-saving motors.
2. Equipped with permanent magnetic bar to prevent damage to the roll from iron in the material;

The magnetic bar can be set outside the feeder when it needs cleaning, this way makes cleaning easy and the iron scrap will not fall inside machine.
3. Compressed air is brought in to blow and clean the parts intermittently where materials accumulated. According to the quantity of materials accumulated, the pneumatic valve can be adjusted properly to keep the machine clean inside.

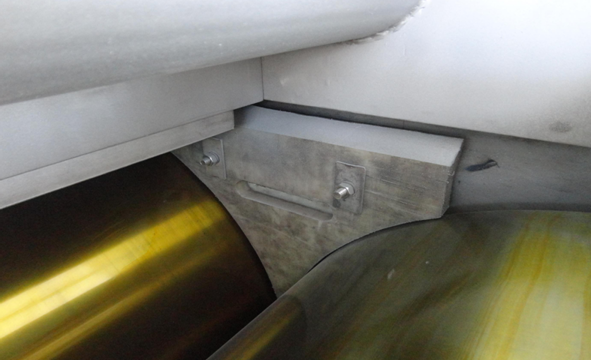

4. It is casted and can keep working for several years without wearing out; operators can move it up, down, left and right freely outside the machine, ensuring no leakage of small particles.

5. The pumping station complete with PLC control system works in an intermittent way. It works like this, when the system pressure rises to the upper limit, the oil pump stops automatically to keep a proper pressure; and when the pressure falls under the lower limit, the oil pump automatically starts and increases the pressure back to normal in 2 or 4 seconds.

Comparing to the traditional pump station, the intermittent type has some advantages:

keeping the proper pressure for a much longer time, saving energy obviously; the real working time of the pump is quite short, so it has a longer work life than traditional type; Working in the intermittent way can keep case and oil temperature almost constant without rising too high, so the system is more stable than the traditional type;

Specification:

Capacity: 60-80T/D

Power of main motor: 18.5KW/1pc ×2

Roller size: Φ600×1000(mm)

Speed of roller: 310r/min

Flake thickness: 0.25～0.35mm

Power of main motor for feeding roller: 1.1KW

Speed of feeding roller: Stepless speed chang

Power of main motor for oil pump: 2.2KW

Pressure of oil pumping system: 3.0～4.0Mpa(Depending on the output)

Size: 2040×1450×1750(mm)(length × width × height)

Weight: Nearly 4 ton in total.

Chinatown Grain Machinery Co., Ltd. provides complete machinery and service for food production and grain processing industries, such as wheat flour mill, fodder factory, and rice processing plant. Thus far, our products include conveying equipment, cleaning equipment, flour milling equipment, and so on. They have been recognized by a number of customers both at home and abroad.

The company focuses on technology reformation, improving the manufacturing ability and quality of machine. The company took the lead in the introduction of CNC laser cutting machine, CNC bending machine, CNC lathes and other advanced processing equipment.

At the same time purchased CNC machining center,CNC boring machine, CNC lathe machine, surface grinder,planing machine and other advanced processing equipment investment,and added electrostatic spraying production line. The product quality can be promised by these reliable manufacturing equipment support.

Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only has good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.

Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance.
The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.

Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business.We warmly welcome clients and supplied excellent solutions with best quality equipment and technical services, and we received high recognition from them.

There are many exhibitions of grain machines we have joined ,it got many attention and set a long-term stable cooperative partnership with many customers who work on the same industry for example:

2015: Indonesia Packaging Machinery Exhibition

2016: Algeria International Agricultural Fair (SIMA SIPSA)

China Machinex Fair Egypt 2016

China Machinex Fair South Africa 2016

2017: Turkey Food and Feed Processing Technology Exhibition (IDMA)

The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.

FAQ

1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What’s the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
