CE Powder Mixing Plant Machine Vibro Discharger TDXZ Series Low Noise

    Buy cheap CE Powder Mixing Plant Machine Vibro Discharger TDXZ Series Low Noise from wholesalers

    Buy cheap CE Powder Mixing Plant Machine Vibro Discharger TDXZ Series Low Noise from wholesalers
    • Buy cheap CE Powder Mixing Plant Machine Vibro Discharger TDXZ Series Low Noise from wholesalers

    CE Powder Mixing Plant Machine Vibro Discharger TDXZ Series Low Noise

    Ask Lasest Price
    Brand Name : CTGRAIN
    Model Number : TDXZ
    Certification : CE / ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 Sets per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    CE Powder Mixing Plant Machine Vibro Discharger TDXZ Series Low Noise

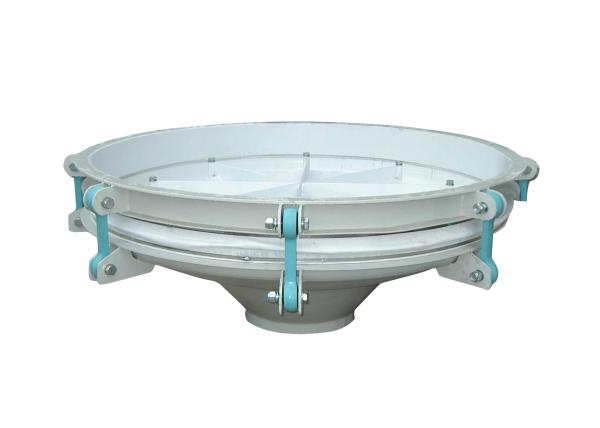

    TDXZ Series Vibro Discharger Used In The Silo Bottom To Discharge Flour​


    The machine for discharging


    To discharge materials from bin or silo without being choked by the vibration of the machine.
    Installed under the dampened wheat bins, flour bins, bran bins for the materials being discharged continuously.
    Can also be used under the big hopper.


    Detailed Part:


    Discharging Disk


    Conical discharging disk locates at the center part of discharging hopper, it pushes the material discharging slowly and uniformly from outlet, meanwhile, it can prevents the material from blocking.


    Technical Parameter List :


    TypeTDXZ 200 x 50
    Motor Speed1430 r / min
    Amplitude0.8 - 3.2 mm
    Power0.75 x 2 kW
    Shape Size2480 x 2260 x 895 mm
    Weight820 kg

    Features:


     Discharging plat taper: 30° for flour and 55° for bran.
     Vibrate motor can be adjusted to meet various vibration force requirements.
     Chromed clamps and wear resistant sleeve.
     Discharge flour equably and continuously.
     Smooth running with low noise.


    Working Principle:


    This machine is installed under the flour bin/silo bottom, for discharging materials uniformly with the motion of vibrating. Materials flow down to the discharging hopper and then under the vibration of motor, materials will flow through discharging plate evenly and gradually without being blocked.


    FAQ:


    1.Q: Are you the manufacturer?
    A :Yes, We are a professional flour milling machine manufacturers.


    2.Q :Will you help to install the machines?
    A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service.
