    Malt Adjustable Rollers Mill Dia 250mm Grain Milling Equipment

    Ask Lasest Price
    Brand Name : CTGRAIN
    Model Number : MSQ
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 Sets per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Malt Adjustable Rollers Mill Dia 250mm Grain Milling Equipment

    Malt Adjustable Rollers Mill 500mm Length Grain Milling Equipment


    Roller Mill Specifications:


    NamePneumatic Roller Mill
    TypeMSQ50*25*2
    Length

    500mm

    Diameter250mm
    Weight1652kg
    Shape Size1360*1560*1822mm

    Roller mill Features:


    Roller is made of centrifugal cast iron, dynamically balanced for a long working span.

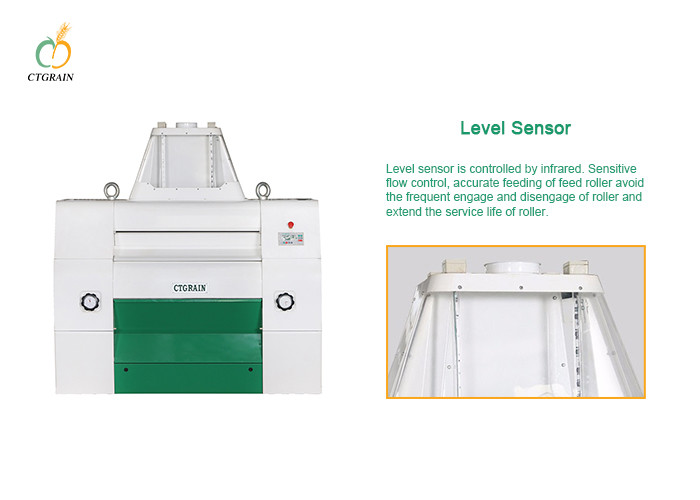

    Level Sensor:

    Level sensor is controlled by infrared. Sensitive flow control, accurate feeding of feed roller avoid the frequent engage and disengage of roller and extend the service life of roller.

    Roller Gap Adjusting:

    Visible roll gap adjusting, easy operation


    Grinding roller:

    High-quality metal is made by centrifugal process, with high strength and good wear resistance.

    Dynamic balance deviation value ≤ 2g.

    Radial runout <0.008 mm.

    The shaft end is made of 40Cr steel with hardness HB248-286.


    Roller Mill Working principle:


    After MME series Electrical Roller mill starting up, the rollers begin to rotate. The distance of two rollers is wider. During this period, there is no material fed into the machine from inlet. When engaging, the slower roller moves toward faster roller normally, meanwhile, the feeding mechanism begins to feed material. At this time, the related parts of feeding mechanism and roller gap adjusting mechanism begin to work. If the distance of two rollers is equal to working roller gap, the two rollers engaged and begin to grind normally. When disengaging, the slower roller leaves from faster roller, meanwhile, the feeding roller stops feeding material.


    Malt Adjustable Rollers Mill Dia 250mm Grain Milling Equipment

    Quality Malt Adjustable Rollers Mill Dia 250mm Grain Milling Equipment for sale
